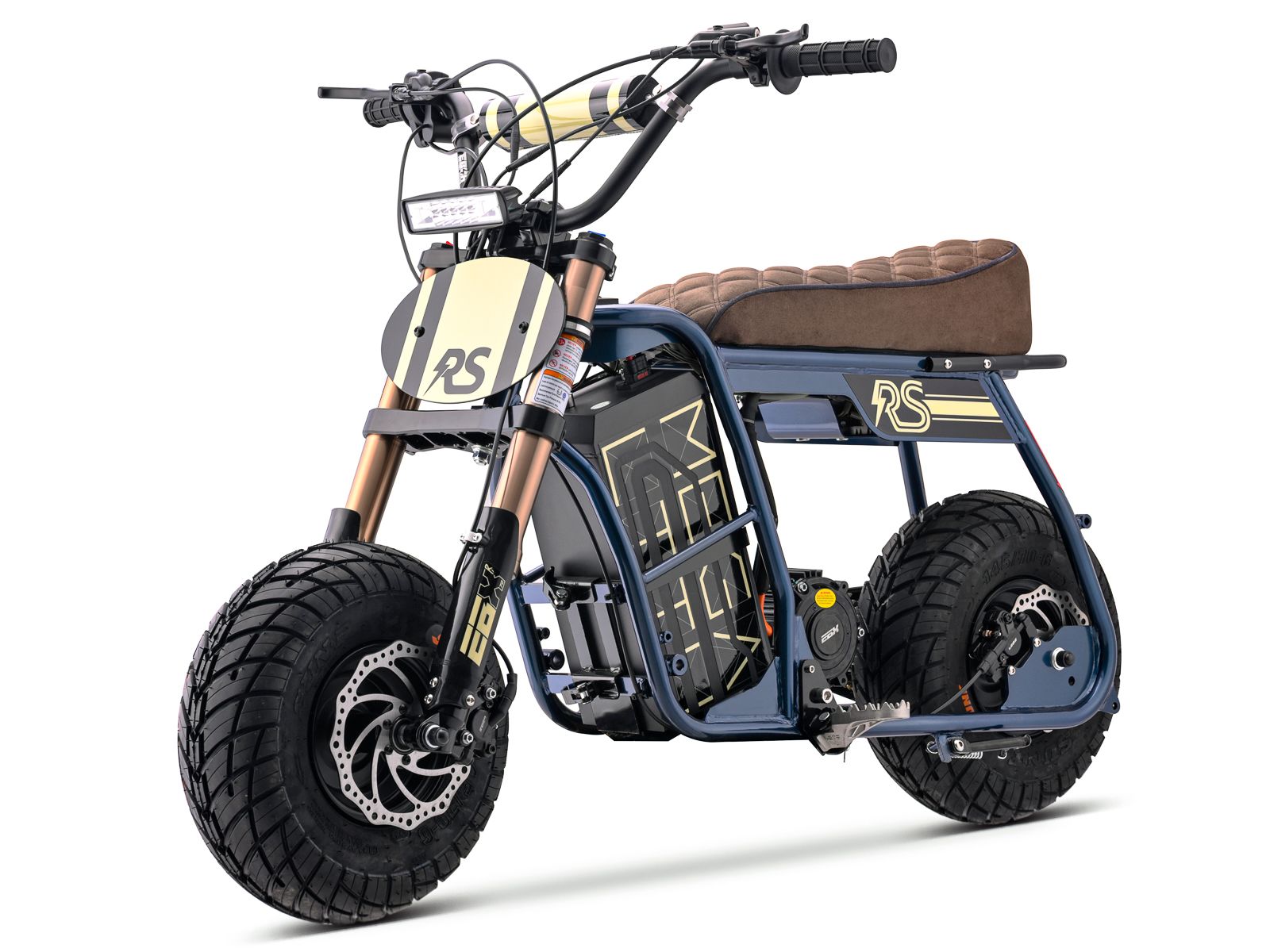

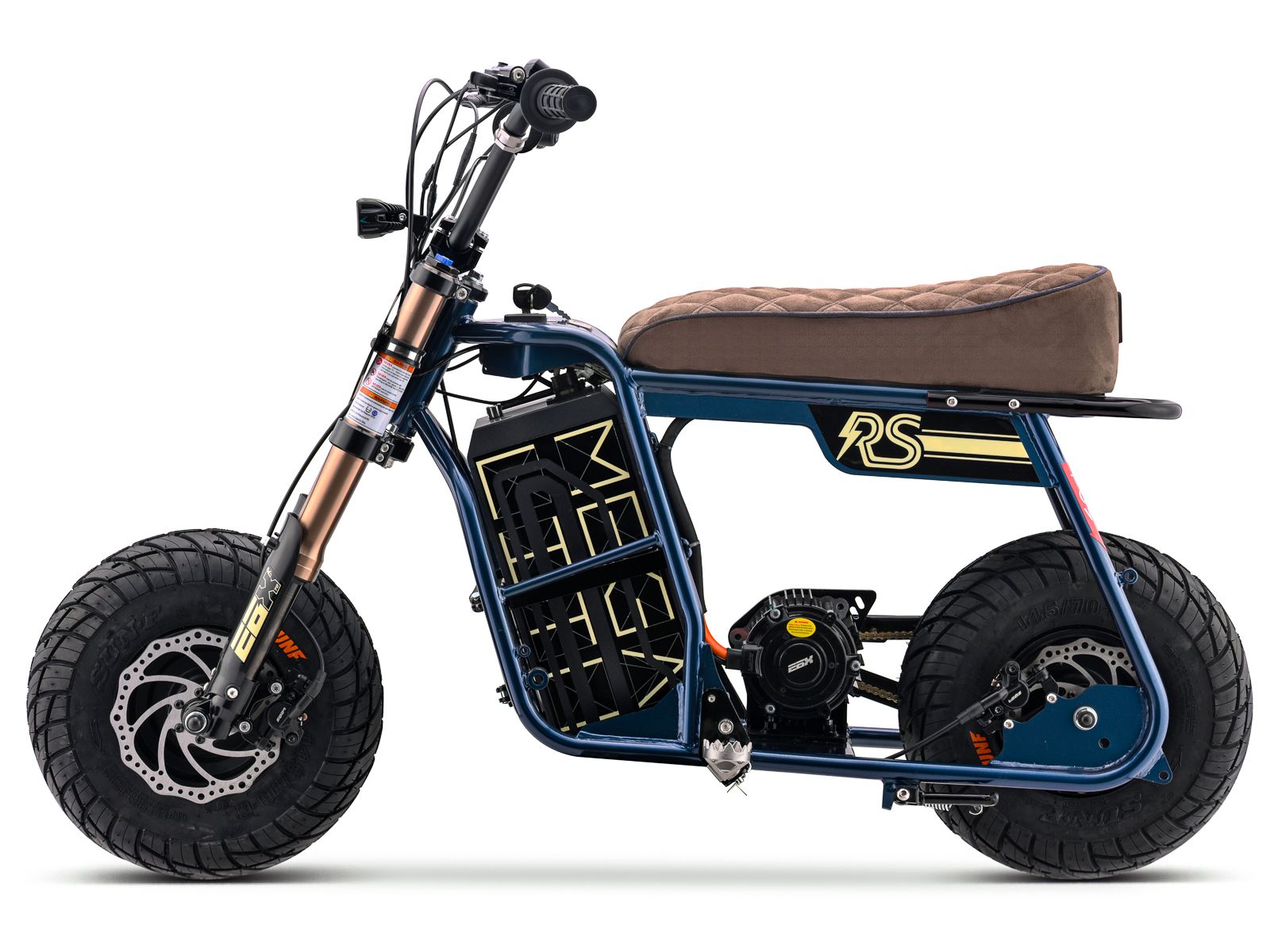

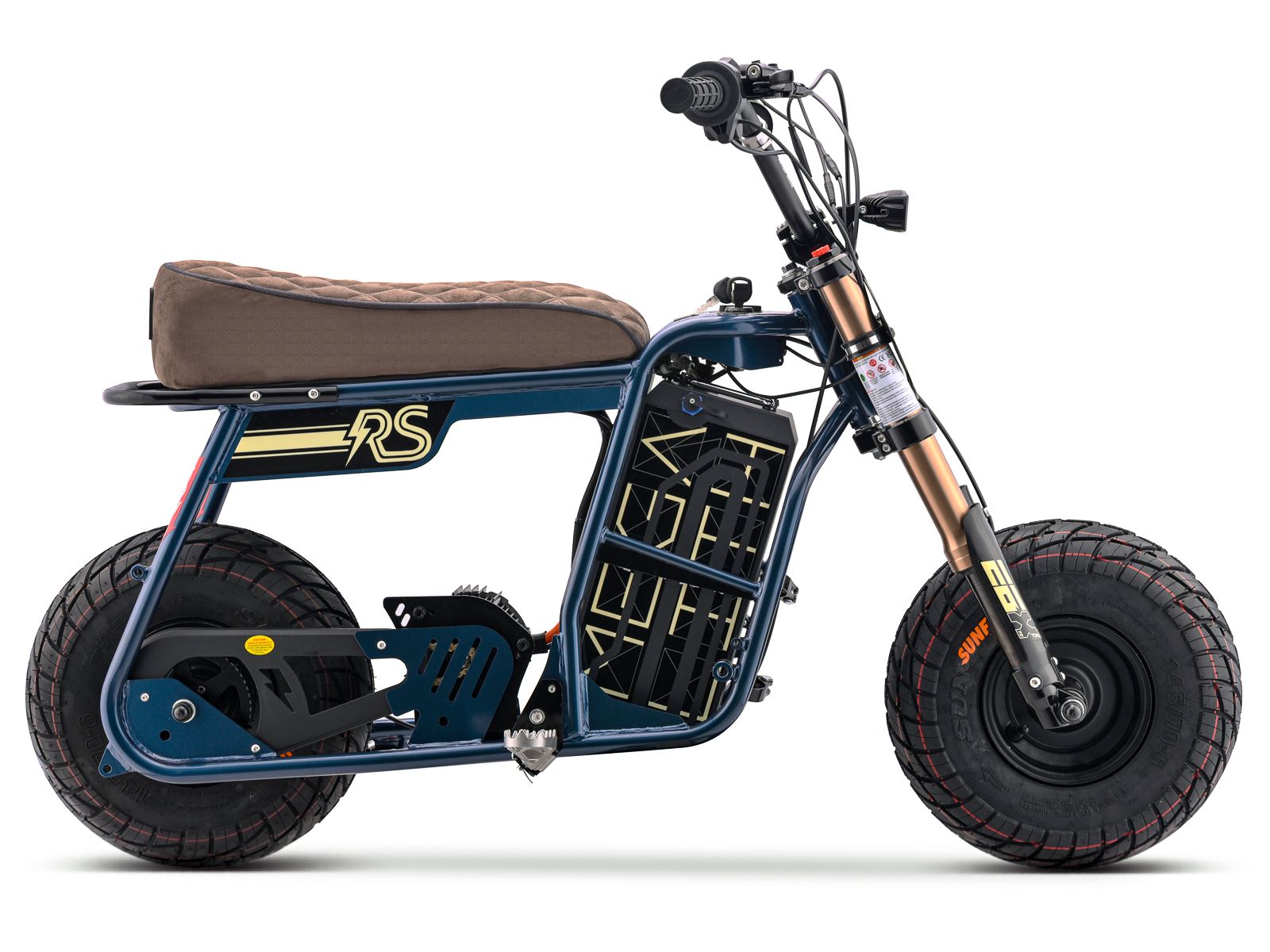

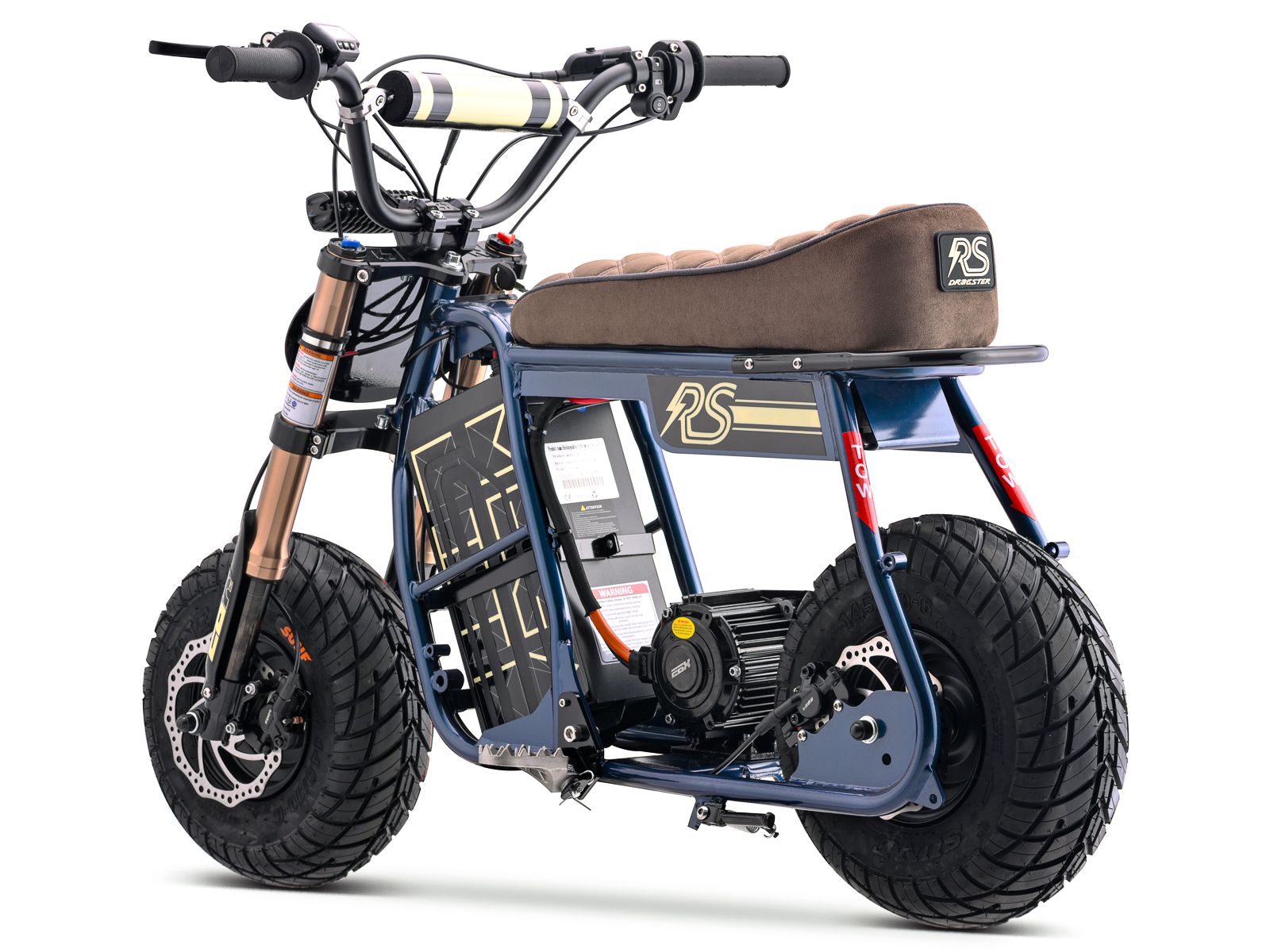

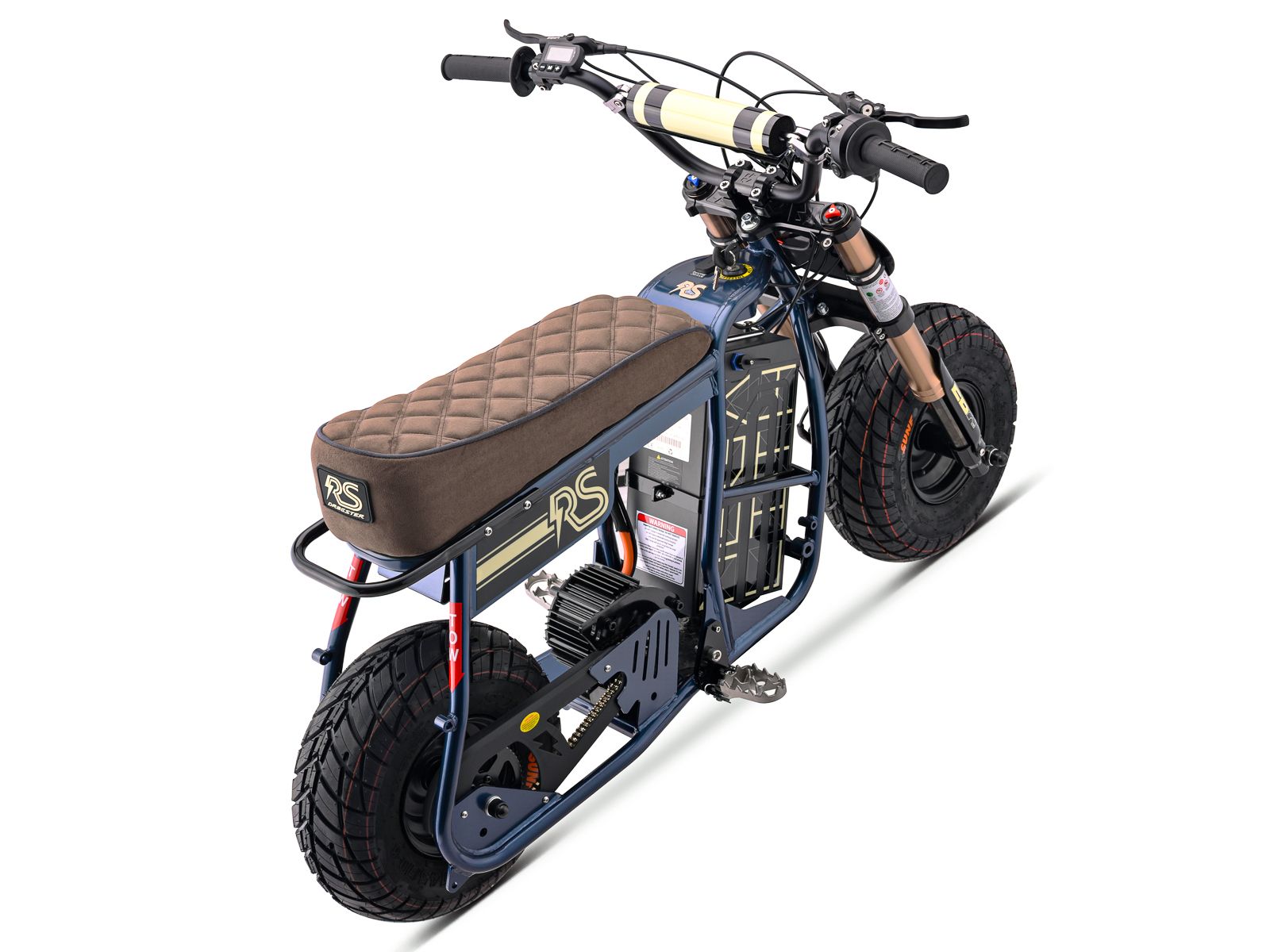

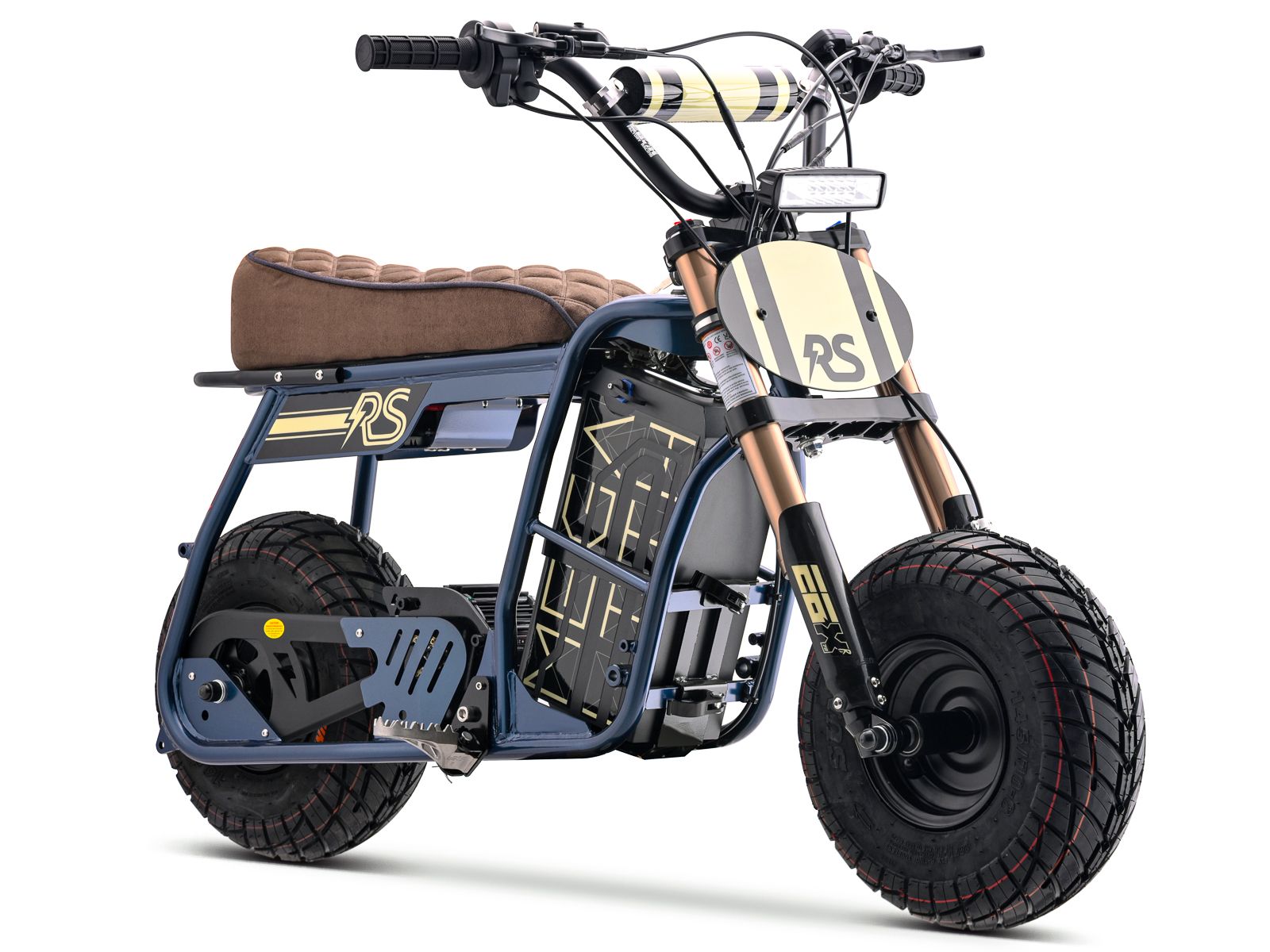

THE EBX Dragster is FINALLY HERE!
In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package.
Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened.
Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display.
Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats.
The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets.
.
SPECS
Frame type
Full duplex
Fork
100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions
Fork Clamps
Billet 6061 T6 CNC machined triple clamps
Bar Risers
6061 T6 CNC machined 35mm rise Ø22.2
Front wheel size
6"
Rear wheel size
6"
Front brake
Hyraulic Disc (Right lever) e-moto brakes
Front disc
Wavey rotor 180mm, 6 bolt 48mm BCD
Rear brake
Hyraulic Disc (Left lever) e-moto brakes
Rear disc
Wavey rotor 160mm, 6 bolt 48mm BCD
Front tyre
145/70-6 SUNF fast SM tyres
Rear tyre
145/70-6 SUNF fast SM tyres
Chain
Uprated performance gold 219H 108L
Gearing
Front 10T, Rear 55T
Max load
100kg
Handlebar
6061 T6 29.5" x 7", with 3 piece crossbar and bar pad
Seat
Luxurious suede RS wedge seat
Motor
72V EBX PMSM motor with temp feedback and encoder
Rated Power
5.4KW
Peak power
6.3KW (8.5hp)
Max RPM
9,000
Battery
New 72v 25 Ah battery with smart BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch
Controller
80 Amp fardriver controller
Throttle
SURRON style full twist
Display
TFT odometer display with 3 speed modes and fault code analysis software
Connectors
Automotive connectors with sealed wiring harness
Charger
AC 100-240V, Output: 84V, 6A
Light
LED headlight and switch
TECH
Charge time
4-5 hours
Range
28-31 miles (45-50Km)
Top speed
56mph (88Km/h)
External adjustability
3 riding modes
Frame construction
High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.
Waterproof
IP54
Other
USB A + C charging port
Wheelbase
910mm
Ground clearance
120mm
Seat height
610mm
Bar height
825mm
Warranty
EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
